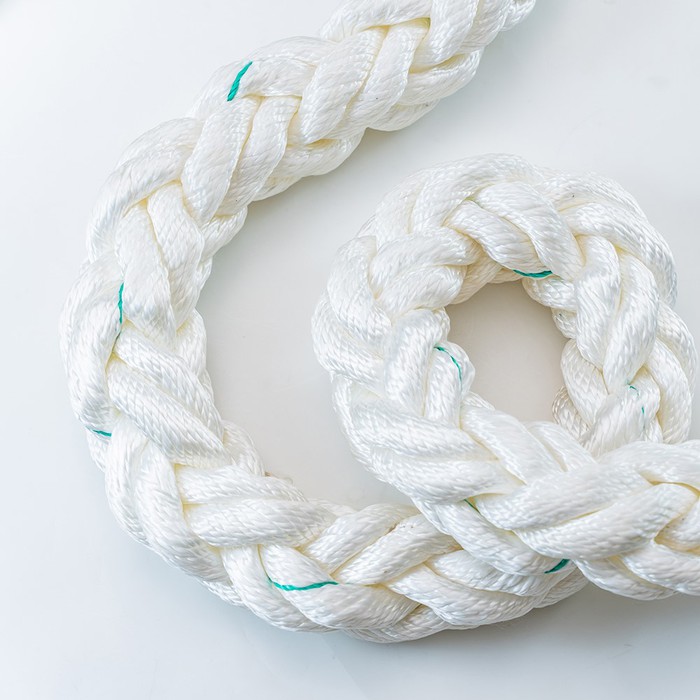

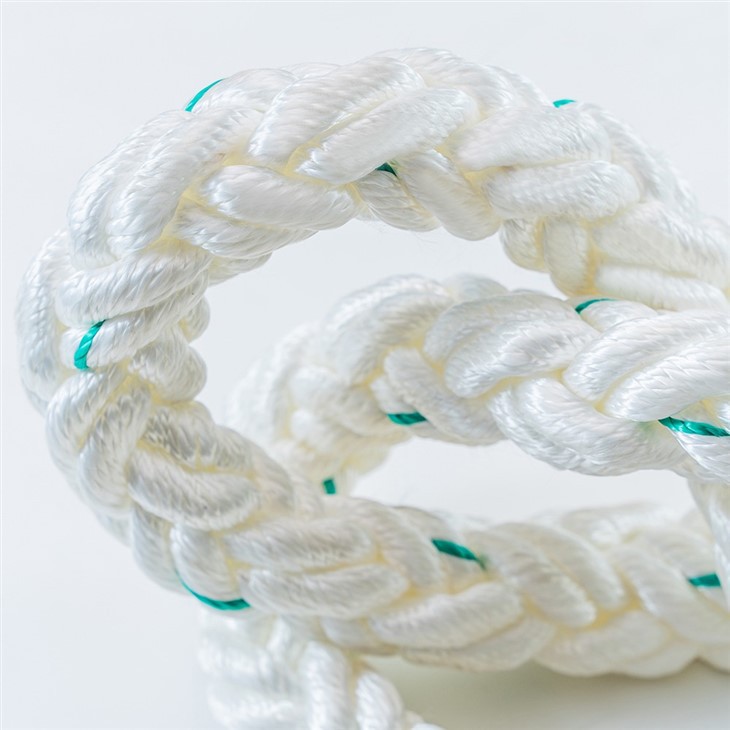

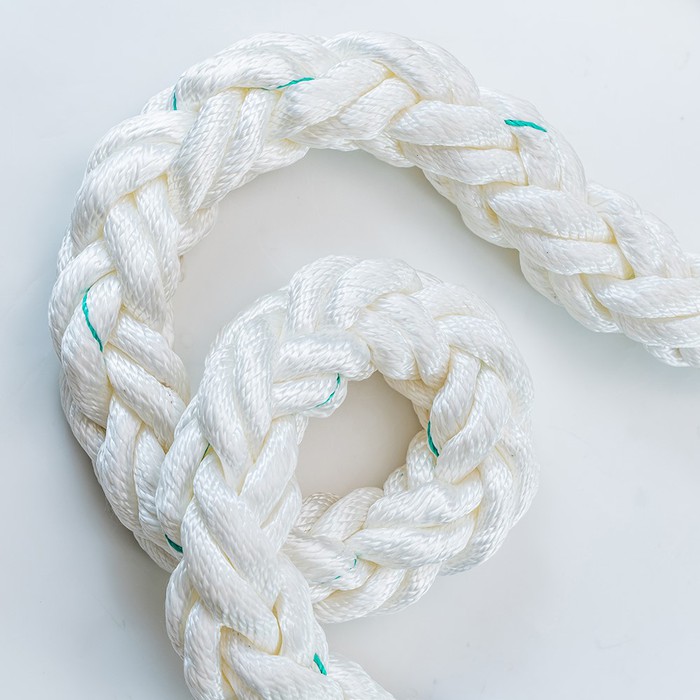

Nylon Rope
Nylon has excellent UV and abrasion resistance. It resists marine growth, rot, mildew, chemicals, petroleum products and ultraviolet degradation, making it an outstanding choice for outdoor use. Nylon rope is best suited to applications where elongation and very high strength are required. This is particularly important for marine applications such as anchor lines and dock lines, where the ability to withstand shock loads will prevent damage to your property. These ropes are 100% nylon and offer the greatest durability and longevity.
Applications
• Mooring rope for ships
• Towing
• Dock line and anchor line
• Packaging and shipping
• Agrculture rope
• Aquaculture rope, netting, fishing
Features
• Abrasion resistance: good
• Chemical resistance: good
• UV resistance: good
• Does not reduced breaking strength in wet condition
• Light weight and floating on water
• Excellent strenght and long life span
• Easy to handle

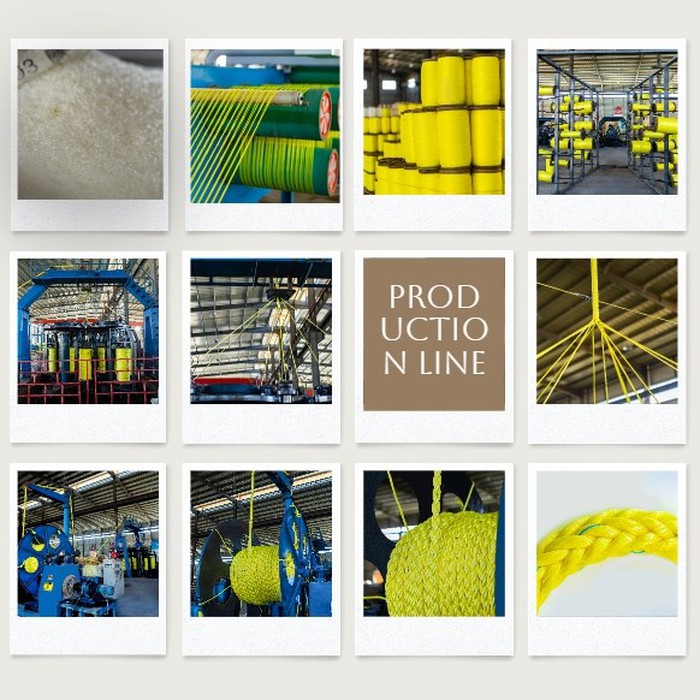

Production Line
- Raw Materials
- Wire Drawing
- Twisting
- Stranding Machine
- Ropemaking
- Compound Rope
- Finished Product
Parameter of High Tenacity Polyamide Rope
| Dia | Circ | Weight | 3-Strand | 8-Strand | 12-Strand | ||||||||
| mm | Inch | Inch | KG/M | KG/220M | |||||||||
| ISO 1140:2012 MBL/KN | Acual MBL /KN | Acual MBL /TON | ISO 1140:2012 MBL/KN | Acual MBL /KN | Acual MBL /TON | ISO 1140:2012 MBL/KN | Acual MBL /KN | Acual MBL /TON | |||||
| 10 | 3/8 | 1-1/4 | 0.06 | 13.64 | 19.10 | 21.97 | 2.24 | - | - | - | - | - | - |
| 12 | 1/2 | 1-1/2 | 0.09 | 19.58 | 27.00 | 31.05 | 3.17 | 27.00 | 31.05 | 3.17 | 28.40 | 32.66 | 3.33 |
| 14 | 9/16 | 1-3/4 | 0.12 | 26.62 | 36.00 | 41.40 | 4.22 | - | - | - | - | - | - |
| 16 | 5/8 | 2 | 0.16 | 34.54 | 45.00 | 51.75 | 5.28 | 47.70 | 54.86 | 5.60 | 50.40 | 57.96 | 5.91 |
| 18 | 3/4 | 2-1/4 | 0.20 | 43.78 | 56.70 | 65.21 | 6.65 | - | - | - | - | - | - |
| 20 | 4/5 | 2-1/2 | 0.25 | 54.12 | 72.00 | 82.80 | 8.45 | 72.00 | 82.80 | 8.45 | 76.50 | 87.98 | 8.98 |
| 22 | 7/8 | 2-3/4 | 0.30 | 65.34 | 85.50 | 98.33 | 10.03 | - | - | - | - | - | - |
| 24 | 1 | 3 | 0.35 | 77.88 | 101.00 | 116.15 | 11.85 | 101.00 | 116.15 | 11.85 | 106.00 | 121.90 | 12.44 |
| 26 | 1-1/16 | 3-1/4 | 0.42 | 91.30 | 113.00 | 129.95 | 13.26 | - | - | - | - | - | - |
| 28 | 1-1/8 | 3-1/2 | 0.48 | 105.82 | 135.00 | 155.25 | 15.84 | 135.00 | 155.25 | 15.84 | 144.00 | 165.60 | 16.90 |
| 30 | 1-1/5 | 3-3/4 | 0.55 | 121.66 | 153.00 | 175.95 | 17.95 | 153.00 | 175.95 | 17.95 | 162.00 | 186.30 | 19.01 |
| 32 | 1-1/4 | 4 | 0.63 | 138.38 | 171.00 | 196.65 | 20.07 | 180.00 | 207.00 | 21.12 | 191.00 | 219.65 | 22.41 |
| 36 | 1-7/16 | 4-1/2 | 0.80 | 175.12 | 212.00 | 243.80 | 24.88 | 225.00 | 258.75 | 26.40 | 239.00 | 274.85 | 28.05 |
| 40 | 1-9/16 | 5 | 0.98 | 216.04 | 270.00 | 310.50 | 31.68 | 270.00 | 310.50 | 31.68 | 284.00 | 326.60 | 33.33 |
| 44 | 1-3/4 | 5-1/4 | 1.19 | 261.36 | 320.00 | 368.00 | 37.55 | 320.00 | 368.00 | 37.55 | 338.00 | 388.70 | 39.66 |
| 48 | 1-7/8 | 6 | 1.41 | 311.08 | 360.00 | 414.00 | 42.24 | 383.00 | 440.45 | 44.94 | 405.00 | 465.75 | 47.53 |
| 52 | 2-1/16 | 6-1/2 | 1.66 | 365.20 | 428.00 | 492.20 | 50.22 | 450.00 | 517.50 | 52.81 | 477.00 | 548.55 | 55.97 |
| 56 | 2-1/4 | 7 | 1.92 | 423.28 | 504.00 | 579.60 | 59.14 | 504.00 | 579.60 | 59.14 | 540.00 | 621.00 | 63.37 |
| 60 | 2-3/8 | 7-1/2 | 2.21 | 485.98 | 567.00 | 652.05 | 66.54 | 567.00 | 652.05 | 66.54 | 603.00 | 693.45 | 70.76 |
| 64 | 2-1/2 | 8 | 2.51 | 552.86 | 639.00 | 734.85 | 74.98 | 639.00 | 734.85 | 74.98 | 675.00 | 776.25 | 79.21 |
| 72 | 2-7/8 | 9 | 3.18 | 699.82 | 810.00 | 931.50 | 95.05 | 810.00 | 931.50 | 95.05 | 855.00 | 983.25 | 100.33 |
| 80 | 3-5/32 | 10 | 3.93 | 863.94 | 954.00 | 1097.10 | 111.95 | 1008.00 | 1159.20 | 118.29 | 1062.00 | 1221.30 | 124.62 |
